Plugin UI Development Guide

This guide will walk you through the development of cli-ui specific features for your vue-cli plugins.

Plugin Info
Project configurations
Project tasks
Client addon
Custom views
Shared data
Plugin actions
IPC
Hooks
Public static files

Plugin Info

When used in the UI, your plugin can show additional information to make it more discoverable and recognizable.

Logo

You can put a logo.png file in the root directory of the folder that will be published on npm. It will be displayed in several places:

When searching for a plugin to install

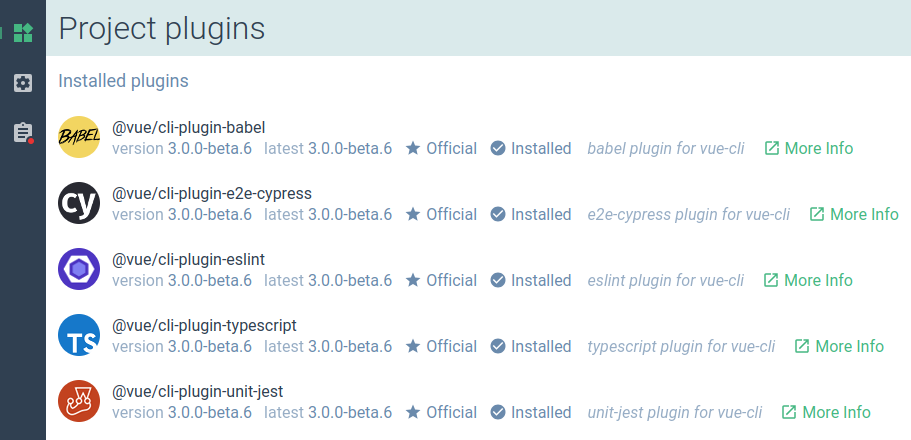

In the installed plugin list

The logo should be a square non-transparent image (ideally 84x84).

Discoverability

For better discoverability when a user searches for your plugin, put keywords describing your plugin in the description field of the plugin package.json file.

Example:

{
  "name": "vue-cli-plugin-apollo",
  "version": "0.7.7",
  "description": "vue-cli 3 plugin to add Apollo and GraphQL"
}

You should add the url to the plugin website or repository in the homepage or repository field so that a 'More info' button will be displayed in your plugin description:

{
  "repository": {
    "type": "git",
    "url": "git+https://github.com/Akryum/vue-cli-plugin-apollo.git"
  },
  "homepage": "https://github.com/Akryum/vue-cli-plugin-apollo#readme"
}

UI API

The cli-ui exposes an API that allows augmenting the project configurations and tasks, as well as sharing data and communicating with other processes.

UI files

Inside each installed vue-cli plugins, the cli-ui will try to load an optional ui.js file in the root folder of the plugin. It will also try to load a vue-cli-ui.js file in the user project root so the UI can be manually extended on a per-project basis (also useful to quickly prototype a plugin).

The file should export a function which gets the api object as argument:

module.exports = api => {
  // Use the API here...
}

⚠️ The files will be reloaded when feetching the plugin list in the 'Project plugins' view. To apply changes, click on the 'Project plugins' button in the navigation sidebar on the left.

Project configurations

You can add a project configuration with the api.describeConfig method.

First you need to pass some informations:

api.describeConfig({
  // Unique ID for the config
  id: 'eslintrc',
  // Displayed name
  name: 'ESLint configuration',
  // Shown below the name
  description: 'Error checking & Code quality',
  // "More info" link
  link: 'https://eslint.org'
})

Specify an icon with either a file type (like 'json') or a file name (like .babelrc to get the babel icon). This is powered by file-icons.

api.describeConfig({
  /* ... */
  // Icon generated using file-icons
  icon: '.eslintrc.json'
})

Then you can specify which files will be read when loading the configuration and then written to (JS files aren't supported yet):

api.describeConfig({
  /* ... */
  // All possible files for this config
  files: {
    json: ['.eslintrc', '.eslintrc.json'],
    // Will read from `package.json`
    package: 'eslintConfig'
  },
})

Supported types: json, yaml, package.

Use the onRead hook to return a list of prompts to be displayed for the configuration:

api.describeConfig({
  /* ... */
  onRead: ({ data }) => ({
    prompts: [
      // Prompt objects
    ]
  })
})

The prompt objects must be valid inquirer prompts with the following additional fields (which are optional):

{
  /* ... */
  // Used to group the prompts into sections
  group: 'Strongly recommended',
  // Additional description
  description: 'Enforce attribute naming style in template (`my-prop` or `myProp`)',
  // "More info" link
  link: 'https://github.com/vuejs/eslint-plugin-vue/blob/master/docs/rules/attribute-hyphenation.md',
}

Supported inquirer types: checkbox, confirm, input, password, list, rawlist.

Use the onWrite hook to write the data to the configuration file (or execute any node code):

api.describeConfig({
  /* ... */
  onWrite: ({ prompts, answers, data, file, api }) => {
    // ...
  }
})

Arguments:

prompts: current prompts runtime objects
answers: answers data from the user inputs
data: initial data read from the file
file: descriptor of the found file ({ type: 'json', path: '...' })
api: onWrite API

Prompts runtime objects:

{
  id: data.name,
  type: data.type,
  name: data.short || null,
  message: data.message,
  group: data.group || null,
  description: data.description || null,
  link: data.link || null,
  choices: null,
  visible: true,
  enabled: true,
  // Current value (not filtered)
  value: null,
  // true if changed by user
  valueChanged: false,
  error: null,
  // Original inquirer prompt object
  raw: data
}

onWrite API:

assignData(newData): use Object.assign to update the config data before writing.
setData(newData): each key of newData will be deeply set (or removed if undefined value) to the config data before writing.
async getAnswer(id, mapper): retrieve answer for a given prompt id and map it through mapper function if provide (for example JSON.parse).

Project tasks

Tasks are generated from the scripts field in the project package.json file.

You can 'augment' the tasks with additional info and hooks thanks to the api.describeTask method:

api.describeTask({
  // RegExp executed on script commands to select which task will be described here
  match: /vue-cli-service serve/,
  description: 'Compiles and hot-reloads for development',
  // "More info" link
  link: 'https://github.com/vuejs/vue-cli/blob/dev/docs/cli-service.md#serve',
  // Optional parameters (inquirer prompts)
  prompts: [
    {
      name: 'open',
      type: 'confirm',
      default: false,
      description: 'Open browser on server start'
    },
    {
      name: 'mode',
      type: 'list',
      default: 'development',
      choices: [
        {
          name: 'development',
          value: 'development'
        },
        {
          name: 'production',
          value: 'production'
        },
        {
          name: 'test',
          value: 'test'
        }
      ],
      description: 'Specify env mode'
    }
  ],
  // Hooks
  // Modify arguments here
  onBeforeRun: ({ answers, args }) => {
    // Args
    if (answers.open) args.push('--open')
    if (answers.mode) args.push('--mode', answers.mode)
    args.push('--dashboard')
  },
  // Immediatly after running the task
  onRun: ({ args, child, cwd }) => {
    // child: node child process
    // cwd: process working directory
  },
  onExit: ({ args, child, cwd, code, signal }) => {
    // code: exit code
    // signal: kill signal used if any
  },
  // Additional views (for example the webpack dashboard)
  // By default, there is the 'output' view which displays the terminal output
  views: [
    {
      // Unique ID
      id: 'vue-webpack-dashboard-client-addon',
      // Button label
      label: 'Dashboard',
      // Button icon
      icon: 'dashboard',
      // Dynamic component to load (see 'Client addon' section below)
      component: 'vue-webpack-dashboard'
    }
  ],
  // Default selected view when displaying the task details (by default it's the output)
  defaultView: 'vue-webpack-dashboard-client-addon'
})

Client addon

A Client addon is a JS bundle which is dynamically loaded into the cli-ui. It is useful to load custom components and routes.

Create a client addon

The recommended way to create a Client addon is by creating a new project using vue-cli 3. You can either do this in a subfolder of your plugin or in a different npm package.

Then add a vue.config.js file with the following content:

const { clientAddonConfig } = require('@vue/cli-ui')

module.exports = {
  ...clientAddonConfig({
    id: '<client-addon-id>',
    // Development port (default 8042)
    port: 8042
  })
}

The clientAddonConfig method will generate the needed vue-cli configuration. Among other things, it disables CSS extraction and outputs the code to ./dist/index.js in the client addon folder.

⚠️ Don't forget to replace <client-addon-id> in the id field with the id of your new client addon!

Then modify the .eslintrc.json file to add some allowed global objects:

{
  // ...
  "globals": {
    "ClientAddonApi": false,
    "mapSharedData": false,
    "Vue": false
  }
}

You can now run the serve script in development and the build one when you are ready to publish your plugin.

ClientAddonApi

Open the main.js file in the client addon sources and remove all the code.

⚠️ Don't import Vue in the client addon sources, use the global Vue object from the browser window.

Here is an example of code for main.js:

import VueProgress from 'vue-progress-path'
import WebpackDashboard from './components/WebpackDashboard.vue'
import TestView from './components/TestView.vue'

// You can install additional vue plugins
// using the global 'Vue' variable
Vue.use(VueProgress, {
  defaultShape: 'circle'
})

// Register a custom component
// (works like 'Vue.component')
ClientAddonApi.component('vue-webpack-dashboard', WebpackDashboard)

// Add routes to vue-router under a /addon/<id> parent route.
// For example, addRoutes('foo', [ { path: '' }, { path: 'bar' } ])
// will add the /addon/foo/ and the /addon/foo/bar routes to vue-router.
// Here we create a new '/addon/vue-webpack/' route with the 'test-webpack-route' name
ClientAddonApi.addRoutes('vue-webpack', [
  { path: '', name: 'test-webpack-route', component: TestView }
])

The cli-ui registers Vue and ClientAddonApi as global variables in the window scope.

In your components, you can use all the components and the CSS classes of @vue/ui and @vue/cli-ui in order to keep the look and feel consistent.

Register the client addon

Back to the ui.js file, use the api.addClientAddon method with a require query to the built folder:

api.addClientAddon({
  id: 'vue-webpack',
  // Folder containing the built JS files
  path: '@vue/cli-ui-addon-webpack/dist'
})

This will use the nodejs require.resolve API to find the folder and serve the index.js file built from the client addon.

Or specify an url when developping the plugin (ideally you want to do this in the vue-cli-ui.js file in your test vue project):

// Useful for dev
// Will override path if already defined in a plugin
api.addClientAddon({
  id: 'vue-webpack',
  // Use the same port you configured earlier
  url: 'http://localhost:8042/index.js'
})

Use the client addon

You can now use the client addon in the views. For example, you can specify a view in a described task:

api.describeTask({
  /* ... */
  // Additional views (for example the webpack dashboard)
  // By default, there is the 'output' view which displays the terminal output
  views: [
    {
      // Unique ID
      id: 'vue-webpack-dashboard-client-addon',
      // Button label
      label: 'Dashboard',
      // Button icon (material-icons)
      icon: 'dashboard',
      // Dynamic component to load, registered using ClientAddonApi
      component: 'vue-webpack-dashboard'
    }
  ],
  // Default selected view when displaying the task details (by default it's the output)
  defaultView: 'vue-webpack-dashboard-client-addon'
})

Here is the client addon code that register the 'vue-webpack-dashboard' component (like we saw earlier):

/* In `main.js` */
// Import the component
import WebpackDashboard from './components/WebpackDashboard.vue'
// Register a custom component
// (works like 'Vue.component')
ClientAddonApi.component('vue-webpack-dashboard', WebpackDashboard)

Custom views

You can add a new view below the standard 'Project plugins', 'Project configuration' and 'Project tasks' ones using the api.addView method:

api.addView({
  // Unique id
  id: 'vue-webpack-test-view',

  // Route name (from vue-router)
  // Use the same name used in the 'ClientAddonApi.addRoutes' method (see above in the Client addon section)
  name: 'test-webpack-route',

  // Button icon (material-icons)
  icon: 'pets',
  // You can also specify a custom image (see Public static files section below):
  // icon: 'http://localhost:4000/_plugin/%40vue%2Fcli-service/webpack-icon.svg',

  // Button tooltip
  tooltip: 'Test view from webpack addon'
})

Here is the code in the client addon that register the 'test-webpack-route' (like we saw earlier):

/* In `main.js` */
// Import the component
import TestView from './components/TestView.vue'
// Add routes to vue-router under a /addon/<id> parent route.
// For example, addRoutes('foo', [ { path: '' }, { path: 'bar' } ])
// will add the /addon/foo/ and the /addon/foo/bar routes to vue-router.
// Here we create a new '/addon/vue-webpack/' route with the 'test-webpack-route' name
ClientAddonApi.addRoutes('vue-webpack', [
  { path: '', name: 'test-webpack-route', component: TestView }
])

Shared data

Use Shared data to communicate info with custom components in an easy way.

In the plugin ui.js:

// Set or update
api.setSharedData('my-variable', 'some-data')
// Get
const sharedData = api.getSharedData('my-variable')
if (sharedData) {
  console.log(sharedData.value)
}
// Remove
api.removeSharedData('my-variable')
// Namespaced versions
const { setSharedData, getSharedData, removeSharedData } = api.namespace('webpack-dashboard-')

In the custom component:

{
  // Sync Shared data
  sharedData () {
    return {
      // You can use `status` in template
      status: `webpack-dashboard-${this.mode}-status`
      // You can also map namespaced Shared data
      ...mapSharedData('webpack-dashboard-', {
        status: `${this.mode}-status`,
        progress: `${this.mode}-progress`,
        operations: `${this.mode}-operations`
      })
    }
  },

  // Manual methods
  async created () {
    const value = await this.$getSharedData('my-variable')

    this.$watchSharedData(`my-variable`, value => {
      console.log(value)
    })

    await this.$setSharedData('my-variable', 'new-value')
  }
}

Plugin actions

Plugin actions are calls sent between the cli-ui (browser) and plugins (nodejs).

In the ui.js file in the plugin (nodejs), you can use two methods from PluginApi:

// Call an action
api.callAction('other-action', { foo: 'bar' }).then(results => {
  console.log(results)
}).catch(errors => {
  console.error(errors)
})

// Listen for an action
api.onAction('test-action', params => {
  console.log('test-action called', params)
})

You can use namespaced versions with api.namespace (similar to Shared data):

const { onAction, callAction } = api.namespace('vue-webpack-')

In the client addon components (browser), you have access to $onPluginActionCalled, $onPluginActionResolved and $callPluginAction:

export default {
  created () {
    this.$onPluginActionCalled(action => {
      // When the action is called
      // before being run
      console.log('called', action)
    })
    this.$onPluginActionResolved(action => {
      // After the action is run and completed
      console.log('resolved', action)
    })
  },

  methods: {
    testPluginAction () {
      // Call a plugin action
      this.$callPluginAction('test-action', {
        meow: 'meow'
      })
    }
  }
}

IPC

IPC stands for Inter-Process Communication. This system allows you to easily send messages from child processes (for example, tasks!). And it's pretty fast and lightweight.

To display the data in the webpack dashboard UI, the serve and build commands from @vue/cli-service send IPC messages to the cli-ui nodejs server when the --dashboard argument is passed in.

In you process code (which can be a Webpack plugin or a nodejs task script), you can use the IpcMessenger class from @vue/cli-shared-utils:

const { IpcMessenger } = require('@vue/cli-shared-utils')

// Create a new IpcMessenger instance
const ipc = new IpcMessenger()

// Connect to the vue-cli IPC network
ipc.connect()

function sendMessage (data) {
  // Send a message to the cli-ui server
  ipc.send({
    webpackDashboardData: {
      type: 'build',
      value: data
    }
  })
}

function messageHandler (data) {
  console.log(data)
}

// Listen for message
ipc.on(messageHandler)

// Don't listen anymore
ipc.off(messageHandler)

function cleanup () {
  // Disconnect from the IPC network
  ipc.disconnect()
}

In a vue-cli plugin ui.js file, you can use the ipcOn, ipcOff and ipcSend methods:

function onWebpackMessage ({ data: message }) {
  if (message.webpackDashboardData) {
    console.log(message.webpackDashboardData)
  }
}

// Listen for any IPC message
api.ipcOn(onWebpackMessage)

// Don't listen anymore
api.ipcOff(onWebpackMessage)

// Send a message to all connected IpcMessenger instances
api.ipcSend({
  webpackDashboardMessage: {
    foo: 'bar'
  }
})

Hooks

Hooks allows to react to certain cli-ui events.

onProjectOpen: Called when the plugin is loaded for the first time for the current project.

api.onProjectOpen((project, previousProject) => {
  // Reset data
})

onPluginReload: Called when the plugin is reloaded.

api.onPluginReload((project) => {
  console.log('plugin reloaded')
})

Public static files

You may need to expose some static files over the cli-ui builtin HTTP server (typically if you want to specify an icon to a custom view).

Any file in an optional ui-public folder in the root of the plugin package folder will be exposed to the /_plugin/:id/* HTTP route.

For example, if you put a my-logo.png file into the my-package/ui-public/ folder, it will be available with the http://localhost:8000/_plugin/my-package/my-logo.png URL when the cli-ui loads the plugin.

18 KiB Raw Blame History
